Quick Details

  • Type: Rotogravure Printing Machine
  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: CHENGBAO MACHINE
  • Model Number: CBYA-P1
  • Usage: Label Printer, aluminum foil printing
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 380V
  • Gross Power: 360KW
  • Dimensions(L*W*H): 25000(L) x 3550(W) x 3000 (H)mm
  • Weight: 45000KG
  • Certification: CE/ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Printing speed: 220m/mm
  • Print Material: aluminum foil,paper
  • Printing width: 650mm,850mm
  • Printing colors: 1-12 colors
  • Print cylinder diameter: 120-280mm
  • Oven length: 1800mm
  • Un&rewind max. diameter: 600-800mm
  • Drying method: Electric Heating
  • Color register: automatic
  • Un&rewind material roll change: auto splicing

Packaging & Delivery

Packaging Details High speed aluminum foil rotogravure printing press machine
Machine spearated into parts and packaged in plastic film which need about four 40HC container
Delivery Time about 120 working days after down payment
CBYA-P1 instrcution

Suitable material

This serie of printing machine is suitable for aluminum foil of 8.5-40um(thinckness), and paper of 30-80g/㎡

Technical parameters
Printing direction
from left to right
Print colors
1- 12 colors
Material width
650MM
Max. Printing speed
220/min.( cylinder diameter φ170mm)
Print cylinder diameter
φ120mm~φ280 mm
Cylinder install
 shaft-less and pneumatic
Printing registration accuracy
±0.1mm (automatic registration system).
Max. unwind & rewind diameter
φ600 mm
Automatic tension range
3~30kg
Ppaer core inner diameter
76mm(inner) ×Ф94mm(outer)
Air source
0.8Mpa
Force of impression
350kg
Scraper string move
±5 mm
Drying way
electric heating (standard)
Total power
360kw
Total weight
about 45000kgs.
Ink supply way
Pneumatic diaphragm pump cycle for ink

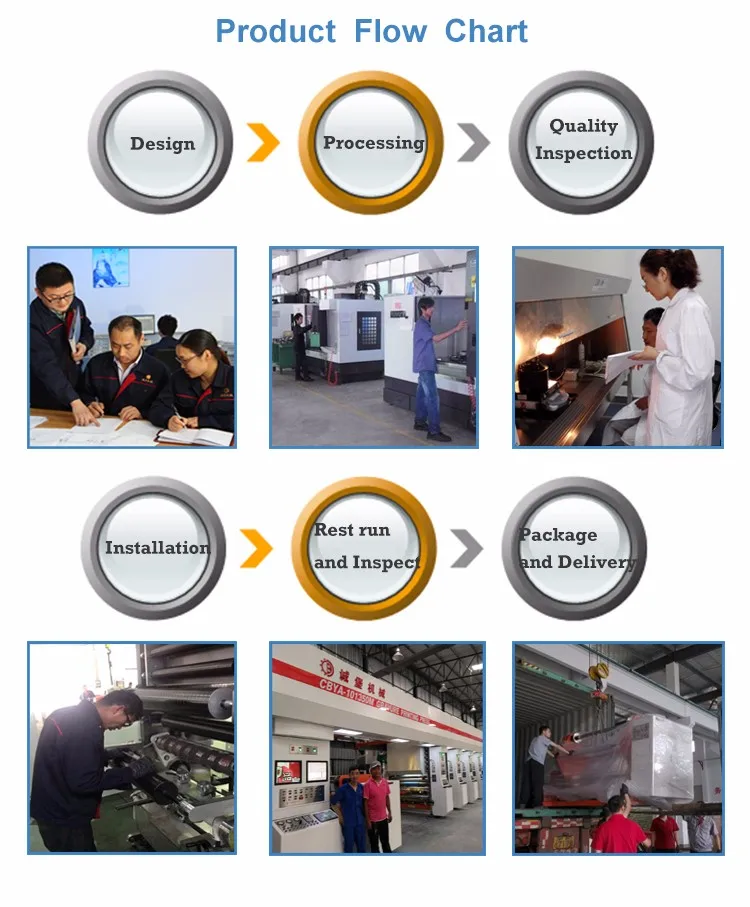

Product flow diagram

How to do regarding quality control?
We always attach great importance to quanlity controlling from the beginning of design according to different customer requirement to the end of delivery. Imported CNC machining tools control the accuracy of pivotal machine parts, strict inspection, maturity processes for both mechanical and electrical insatllation, adopt international electricity brand and so on, test run serval times and inspected by customer themselves, professional package and delivery.

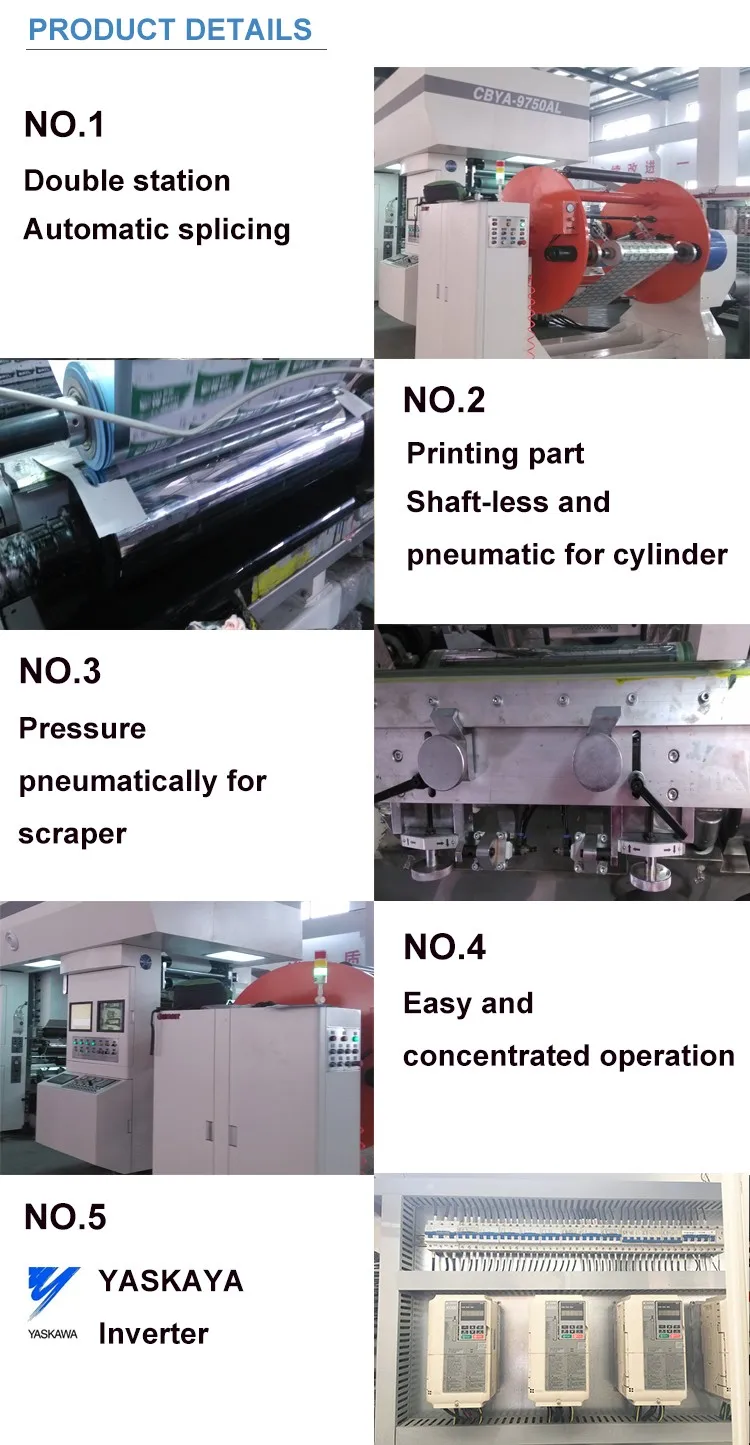

Detailed images

Main features

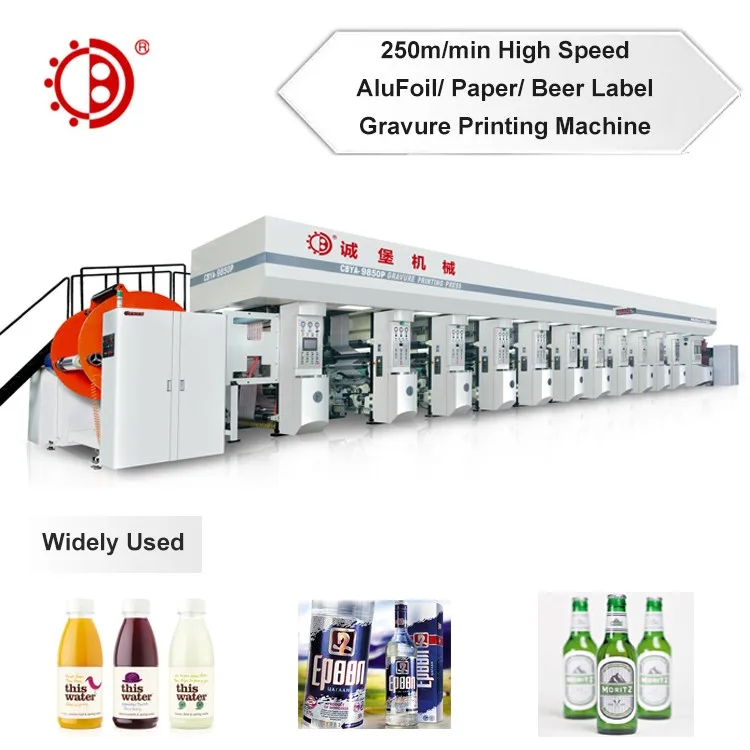

1,Beer label printing machine specially for paper
2,Disc type unwind, safety chuck, straight cutter, forward or reverse rewind and unwind, also double cutter for option
3,Auto roll diameter detect, non-stop high speed auto splicing, balance length<180mm
4,Electrical horizontal registration for option, integrated control panel, the first and the last color unit can use individual driving
5,The last color unit adopts bottom web way for reverse printing
6,Drying can choose air conditioner and electrical heating, air blow adjustable by inverter, energy saving and environment friendly
7,Pre-heating, web guide EPC, stroboscope for still picture equipped

Packing & Delivery
Packaging
Size
25000(L) x 3550(W) x 3000 (H)mm
Weight
about 45000 kgs



Packaging Details

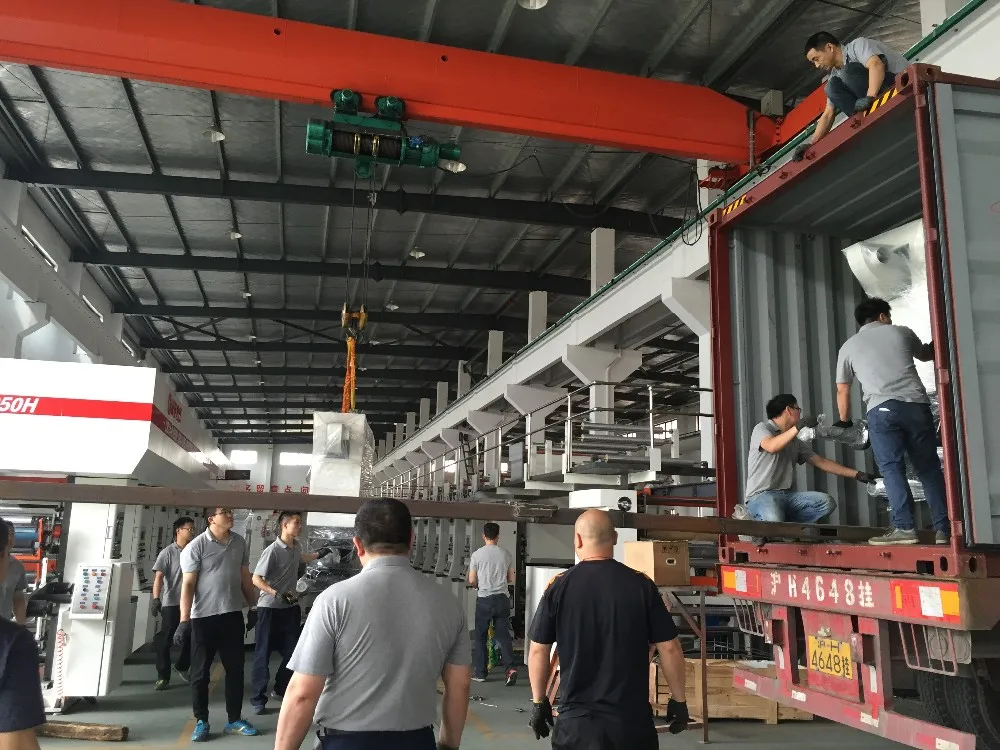

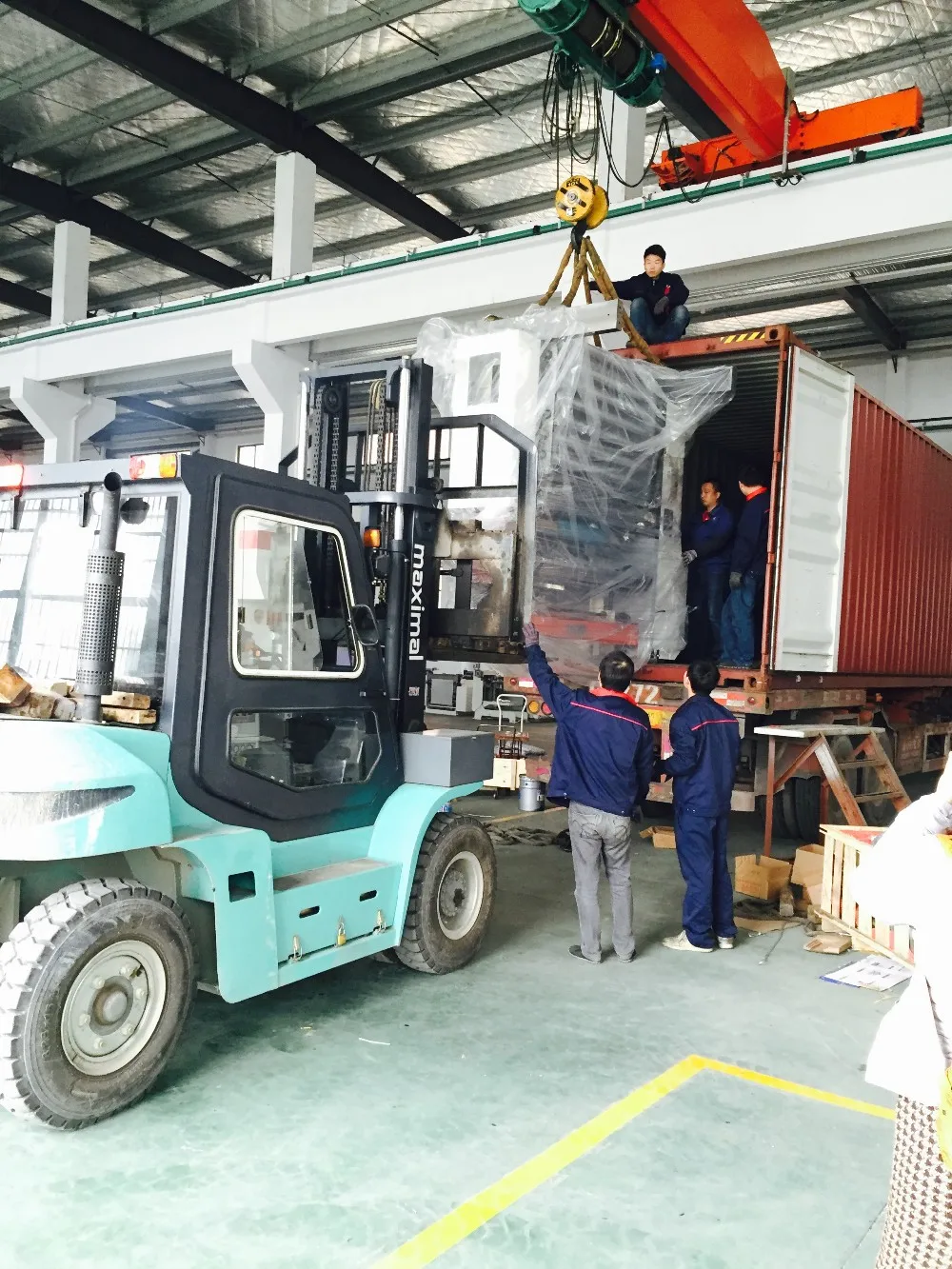

The machine will be separated into serval parts and packaged in plastic film professionaly by our technicians in the factory

Delivery

1. The machine will be ready in about 120 working days after received down payment.


2. It needs about fOUR 40HC container to ship it.


3. All the parts will be fixed in the container

Service and customer

Pre-Sales Service

* Inquiry and consulting support.

* Sample material testing support.

* View our factory and products

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1, Purchase Service
Our company has a specialized and efficiency technology team with rich experience in printing & packing field. If you are new on the printing and packing area, some samples of your products could be shown to us will be appreciated. We will give you specialized suggestions of whole work.

2, Shipping Service
We have professional and high efficiency forwarding agents.

3, Installation Service
We can send engineers to buyer's factory to install and test run the machine until our products were in good condition.

4, Clinets Training Service
The engineers or technicians we sent to install the machine can teach the buyer how to operate and maintain our products during the period of commissioning.

5, After sales Service
We will warrantee the machine for 12 months after installation and test running. During the warranty period, if any part of the machine is damaged duo to the fault of manufacturer (during normal using), we will provide spare parts for free and shall repair or replace it at once if possible.

Company show

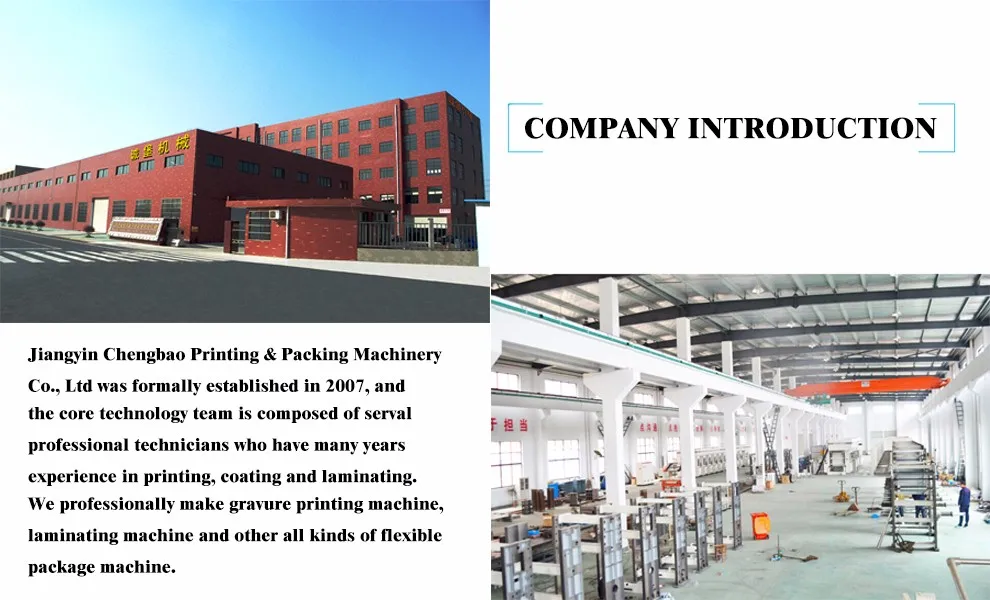

Company introduction

Jiangyin Chengbao Printing & Packing Machinery Co., Ltd was formally established in 2007, and the core technology team is composed of serval professional technicians who have many years experience in printing, coating and laminating. We professionally make gravure printing machine, laminating machine and other all kinds of flexible package machine.
Our company set innovation, design, development, production, sales in together, introduce domestic and foreign advanced technology, based on the abundant experience, provide complete sets of equipment for comprehensive solution for printing and packing enterprises. Our company is well-known at home and abroad of all famous company.
“Integrity management, innovation”is our business idea; “Quality first-class service-oriented.”is our service aim; “Customer satisfaction, win-win cooperation” is our eternal pursuit. We are willing to create prosperous tomorrow together with customers of both new and old.

AFQ

1, Q: Are you a factory or trading company?
A: We are a factory

2, Q: Where is your factory located, how can I visit there?
A: Our factory is located in Jiangyin city, Jiangsu province, China. You can fly to Shanghai airport, and take a freeway train to wuxi dong station, we will arrange for picking up. All our clients are warmly wlcome to visit us.

3, Q: How does you factory do regarding quality control?
A:We always attach great importance to quality controlling from the beginning to the end. Imported CNC machining tools control the accuracy of pivotal machine parts, strict inspection, maturity processes for assembly, international electricity brand and so on.

4. Q:Payment terms?
A: 30% by T/T before production, 70% by T/T or Irrevocable L/C at sight before shipment

5. Q: Deiivery time?
A: About 120 working days after received down payment

Why choose us?
1, Excellent designers and engineers, Veteran printers, technicians, and mechanics.
2, We use imported CNC machining tools to guarantee the accuracy of pivotal parts of our machine.
3, Assembly process of maturity and rich experience of assembling technicians.
4, We choose international electricity brand and system for the machine.
5, Our products have to pass a strict inspection before shipment.
6, Our company enjoys good reputation in Chinese domestic market.
7, Best service.
